Festo
1145093

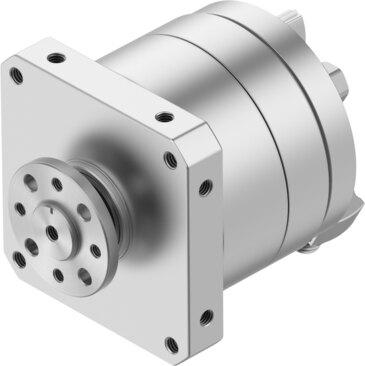

Rotary actuator DSM-T-16-270-P-FW-A-B
The Festo 1145093 is a double-acting industrial component featuring a rotary vane structural design with a size 16 and a swivel angle range of 0 degrees to 270 degrees. Operating at pressures from 0.25 MPa to 1 MPa (2.5 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:-:-], this unit utilizes elastic cushioning rings or pads at both ends with a 1.4-degree cushioning angle. Position sensing is achieved via proximity switch, and the device supports a maximum swivel frequency of 2 Hz at 6 bar alongside a repetition accuracy of 1 degree and a max stop force of 160 N. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1145093
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1145093.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Cushioning angle
- 1.4 deg
- Adjustment range of swivel angle
- 0 deg...270 deg
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 17 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 160 N
- Max. axial force
- 30 N
- Max. radial force
- 75 N
- Theoretical torque at 6 bar
- 5 Nm
- Permissible mass moment of inertia
- 0.01 kgm²
- Product weight
- 690 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1145093. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
