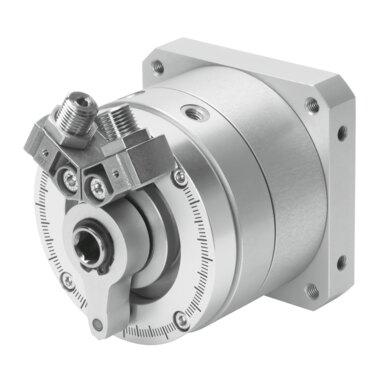

Name: Festo 1145116 Rotary actuator DSM-T-63-270-P-A-B
Brand: Festo

Rotary actuator DSM-T-63-270-P-A-B

The Festo part number 1145116 is a double-acting rotary vane industrial component featuring a size 63 design with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and a swivel angle from 0 degrees to 270 degrees. This unit utilizes elastic cushioning rings or pads at both ends, accommodates a permissible stop radius of 50 mm, and delivers a max stop force of 1050 N with a repetition accuracy of 1 degree. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], it functions within an ambient temperature range of -10 °C to 60 °C and allows position sensing via a proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1145116
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1145116.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 63
Cushioning angle: 2 deg
Adjustment range of swivel angle: 0 deg...270 deg
Swivel angle: 0 deg...270 deg
Permissible stop radius: 50 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Precision adjustment: -6 deg
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Max. swivel frequency at 6 bar: 1.6 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Max. stop force: 1050 N
Max. axial force: 500 N
Max. radial force: 500 N
Theoretical torque at 6 bar: 80 Nm
Permissible mass moment of inertia: 0.15 kgm²
Product weight: 6730 g
Type of mounting: With internal thread
Pneumatic connection: G1/4
Note on materials: RoHS compliant
Drive shaft material: Steel | Nickel-plated
Seals material: TPE-U(PU)
