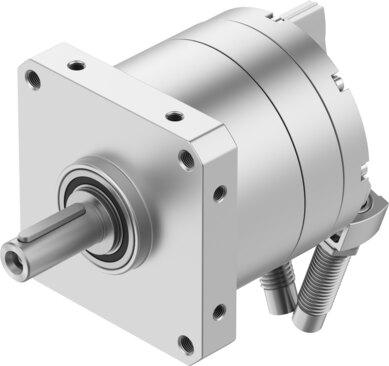

Name: Festo 1145118 Rotary actuator DSM-T-63-270-CC-A-B
Brand: Festo

Rotary actuator DSM-T-63-270-CC-A-B

The Festo part number 1145118 is a double-acting rotary vane industrial component featuring a size 63 design with an operating pressure range of 0.2 MPa to 1 MPa and a swivel angle of 0 degrees to 240 degrees. This unit incorporates pneumatic shock absorbers at both ends for cushioning, a 17.5-degree cushioning angle, precision adjustment of -3 degrees, and position sensing via proximity switch. It operates with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates oil lubrication, and delivers a maximum stop force of 1050 N at an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1145118
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1145118.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 63
Cushioning angle: 17.5 deg
Adjustment range of swivel angle: 0 deg...240 deg
Swivel angle: 0 deg...240 deg
Permissible stop radius: 50 mm
Cushioning: Pneumatic shock absorber at both ends
Mounting position: Any
Precision adjustment: -3 deg
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Max. swivel frequency at 6 bar: 0.6 Hz
Repetition accuracy: 0.1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Max. stop force: 1050 N
Max. axial force: 500 N
Max. radial force: 500 N
Theoretical torque at 6 bar: 80 Nm
Permissible mass moment of inertia: 0.5 kgm²
Product weight: 6980 g
Type of mounting: With internal thread
Pneumatic connection: G1/4
Note on materials: RoHS compliant
Drive shaft material: Steel | Nickel-plated
