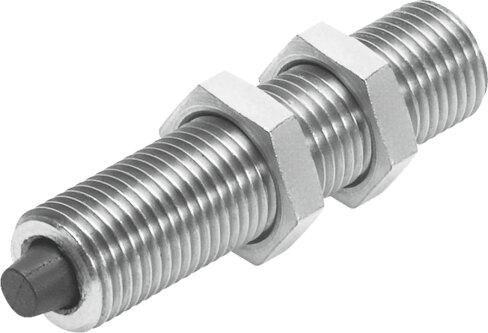

Name: Festo 1153023 Shock absorber DYEF-S-M16-Y1
Brand: Festo

Shock absorber DYEF-S-M16-Y1

The Festo part number 1153023 is an industrial component featuring an M16 size and a 1.3 mm stroke. Constructed with a high-alloy steel housing and NBR seals, it includes elastic cushioning rings at both ends without a fixed metal stop, accommodating any mounting position with a locknut. This component operates within an ambient temperature range of 0 °C to 60 °C, supports a maximum impact velocity of 0.8 m/s, and provides a maximum energy absorption per stroke of 0.55 J with a 1.3 mm cushioning length. It features a CRC rating of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and a product weight of 40 g without position sensing. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1153023
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1153023.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: M16
Stroke: 1.3 mm
Cushioning: Elastic cushioning rings/pads at both ends, without xed metal stop
Mounting position: Any
Position sensing: None
Max. impact velocity: 0.8 m/s
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Cushioning length: 1.3 mm
Max. energy absorption per stroke: 0.55 J
Product weight: 40 g
Type of mounting: With locknut
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1153023. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
