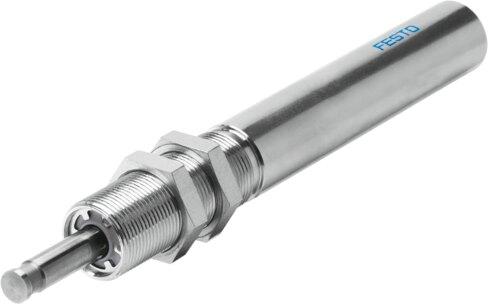

Reference imageConfirm configuration by manufacturer part number.
Festo
1155690
Hydraulic cushioning cylinder DYHR-16-20-Y5
The Festo 1155690 is a single-acting industrial component featuring a size 16 format with a 20 mm stroke and adjustable cushioning designed for operation in any mounting position. It delivers a feed force ranging from 160 N to 1600 N, a maximum stop force of 1600 N, and an impact velocity up to 0.3 m/s while operating within an ambient temperature range of 0 °C to 80 °C. This unit exhibits a corrosion resistance class of 1, a product weight of 190 g, and a maximum energy absorption capacity of 32 J per stroke. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1155690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1155690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 20 mm
- Cushioning
- Adjustable
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Position sensing
- None
- Max. impact velocity
- 0.3 m/s
- Feed speed
- 0.2 mm/s...100 mm/s
- Reset time at room temperature
- 0.4 s
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Max. stop force
- 1600 N
- Max. energy absorption per stroke
- 32 J
- Max. energy absorption per hour
- 65000 J
- Min. feed force
- 160 N
- Max. feed force
- 1600 N
- Max. residual energy
- 0.16 J
- Resetting force
- 5.4 N
- Product weight
- 190 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel | Galvanized
- Piston rod material
- Hardened | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1155690. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
