Festo
1155691

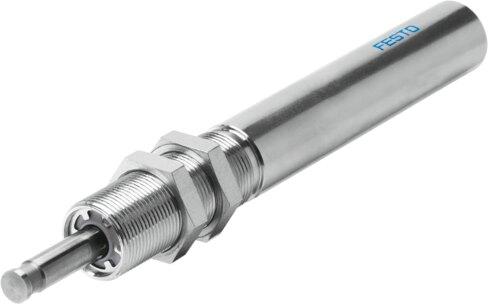

Hydraulic cushioning cylinder DYHR-16-40-Y5
The Festo 1155691 is a single-acting industrial component with a size 16, a 40 mm stroke, and adjustable cushioning designed for operation in any mounting position. It features a feed speed ranging from 0.2 mm/s to 100 mm/s, a maximum impact velocity of 0.3 m/s, and handles a maximum stop force and feed force of 1600 N with a maximum energy absorption of 64 J per stroke. Weighing 255 g with a CRC rating of 1, this unit operates within ambient temperatures from 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1155691
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1155691.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 40 mm
- Cushioning
- Adjustable
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Position sensing
- None
- Max. impact velocity
- 0.3 m/s
- Feed speed
- 0.2 mm/s...100 mm/s
- Reset time at room temperature
- 0.8 s
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Max. stop force
- 1600 N
- Max. energy absorption per stroke
- 64 J
- Max. energy absorption per hour
- 100000 J
- Min. feed force
- 160 N
- Max. feed force
- 1600 N
- Max. residual energy
- 0.16 J
- Resetting force
- 5.4 N
- Product weight
- 255 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel | Galvanized
- Piston rod material
- Hardened | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1155691. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
