Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

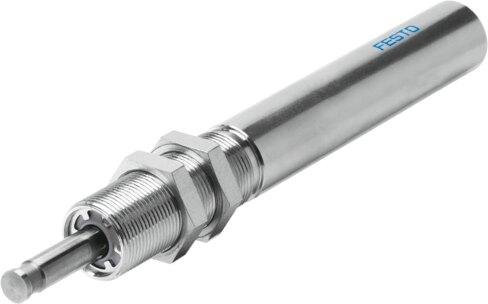

Reference imageConfirm configuration by manufacturer part number.
Festo
1155693
Hydraulic cushioning cylinder DYHR-20-50-Y5
The Festo part number 1155693 is a single-acting industrial component with a size 20 designation and a 50 mm stroke, operating in a pushing mode with adjustable cushioning and no position sensing. Weighing 440 g with a CRC 1 low corrosion stress rating and VDMA24364-B2-L LABS conformity, it functions in ambient temperatures from 0 °C to 80 °C in any mounting position. This unit features a feed speed ranging from 0.2 mm/s to 100 mm/s, a maximum impact velocity of 0.3 m/s, a 1 s reset time at room temperature, a 9 N resetting force, a minimum feed force of 250 N, and a maximum feed force of 2500 N. It accommodates a max stop force of 2500 N, a max energy absorption per stroke of 125 J, a max energy absorption per hour of 140000 J, and a max residual energy of 0.32 J. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1155693
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1155693.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke
- 50 mm
- Cushioning
- Adjustable
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Position sensing
- None
- Max. impact velocity
- 0.3 m/s
- Feed speed
- 0.2 mm/s...100 mm/s
- Reset time at room temperature
- 1 s
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Max. stop force
- 2500 N
- Max. energy absorption per stroke
- 125 J
- Max. energy absorption per hour
- 140000 J
- Min. feed force
- 250 N
- Max. feed force
- 2500 N
- Max. residual energy
- 0.32 J
- Resetting force
- 9 N
- Product weight
- 440 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel | Galvanized
- Piston rod material
- Hardened | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1155693. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
