Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

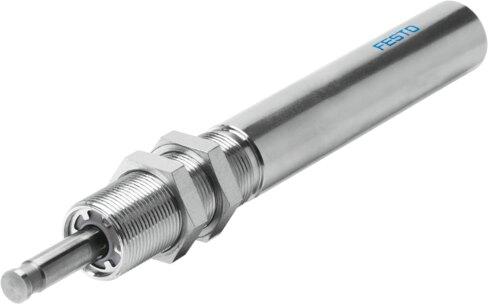

Reference imageConfirm configuration by manufacturer part number.
Festo
1155696
Hydraulic cushioning cylinder DYHR-32-60-Y5
The Festo 1155696 is a single-acting industrial component featuring a size 32 format and a 60 mm stroke designed for pushing operations in any mounting position. This unit includes adjustable cushioning, handles feed speeds from 0.2 mm/s to 100 mm/s with a maximum impact velocity of 0.3 m/s, and operates within an ambient temperature range of 0 °C to 80 °C. It delivers a feed force between 640 N and 6400 N, a maximum stop force of 6400 N, and energy absorption capacities of 384 J per stroke and 220000 J per hour. Submit the exact part number, quantity, and application requirements to request a formal quote for this 1380 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1155696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1155696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 60 mm
- Cushioning
- Adjustable
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Position sensing
- None
- Max. impact velocity
- 0.3 m/s
- Feed speed
- 0.2 mm/s...100 mm/s
- Reset time at room temperature
- 1.2 s
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Max. stop force
- 6400 N
- Max. energy absorption per stroke
- 384 J
- Max. energy absorption per hour
- 220000 J
- Min. feed force
- 640 N
- Max. feed force
- 6400 N
- Max. residual energy
- 2 J
- Resetting force
- 18 N
- Product weight
- 1380 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel | Galvanized
- Piston rod material
- Hardened | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1155696. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
