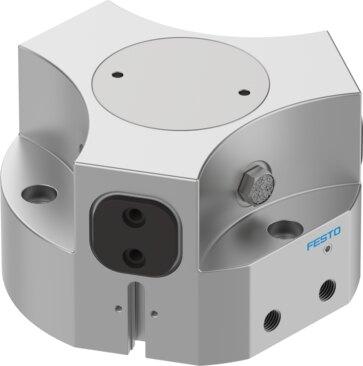

Name: Festo 1163049 Three-point gripper HGDD-80-A
Brand: Festo

Three-point gripper HGDD-80-A

The Festo size 80 industrial component (Part Number: 1163049) is a double-acting, 3-point pneumatic gripper featuring an inclined plane structural design with positively driven motion sequence and position sensing via proximity switch. This size 80 unit operates at pressures from 3 bar to 8 bar with sealing air between 0 bar and 0.5 bar, delivering a max operating frequency of 4 Hz alongside minimum opening and closing times of 152 ms and 142 ms respectively at 6 bar. Technical tolerances include a maximum interchangeability of 0.2 mm, rotational symmetry of 0.2 mm, repetition accuracy of 0.05 mm, gripper jaw backlash Sz of 0.05 mm, and maximum gripper jaw angular play ax, ay of 0.1 deg across its three gripper jaws. Each jaw provides an opening gripping force of 2829 N and 943 N and a closing gripping force of 2745 N and 915 N at 6 bar, with a 12 mm stroke per gripper jaw in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1163049
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1163049.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 80
Stroke per gripper jaw: 12 mm
Max. interchangeability: 0.2 mm
Max. gripper jaw angular play ax, ay: 0.1 deg
Max. gripper jaw backlash Sz: 0.05 mm
Rotational symmetry: 0.2 mm
Pneumatic gripper repetition accuracy: 0.05 mm
Number of gripper jaws: 3
Mounting position: Any
Mode of operation: Double-acting
Gripper function: 3-point
Structural design: Inclined plane | Positively driven motion sequence
Position sensing: Via proximity switch
Gripping force per gripper jaw at 6 bar, opening: 2829 N | 943 N
Gripping force per gripper jaw at 6 bar, closing: 2745 N | 915 N
Operating pressure: 3 bar...8 bar
Operating pressure for sealing air: 0 bar...0.5 bar
Max. operating frequency of pneumatic gripper: 4 Hz
Min. opening time at 6 bar: 152 ms
Min. closing time at 6 bar: 142 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP65
Ambient temperature: 5 °C...60 °C
Mass moment of inertia: 70.22 kgcm²
Maximum force on gripper jaw Fz, static: 3600 N
Maximum torque on gripper jaw, Mx static: 100 Nm
