Festo
1166938

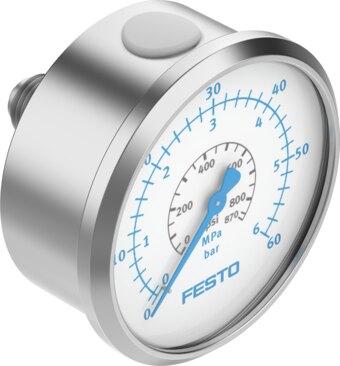

Pressure gauge PAGL-HP3-63-60-G14
The Festo 1166938 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a centered rear G1/4 pneumatic connection for in-line installation. It provides a display and operating pressure range of 0 bar to 60 bar, 0 MPa to 6 MPa, or 0 psi to 870 psi, complying with EN 837-1 standards with a measurement accuracy class of 1.6. Built with brass wetted parts and a brass screwed plug, this IP65-rated component operates with inert gases and neutral liquids within a medium and ambient temperature range of 0 °C to 60 °C, while supporting ATEX Zone 1, 2, 21, and 22 explosion protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1166938
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1166938.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...60 bar | 0 MPa...6 MPa | 0 psi...870 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...6 MPa | 0 bar...60 bar | 0 psi...870 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP65
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- Steel
- Official Festo technical specifications
- Display range 0 bar...60 bar 0 MPa...6 MPa 0 psi...870 psi Conforms to standard EN 837-1 Pressure gauge nominal size 63 Explosion prevention and protection Observe the information on the certicate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Structural design Bourdon tube pressure gauge Type of mounting In-line installation Operating medium Inert gases Neutral liquids Information on operating and pilot media No acetylene No oxygen Operating pressure 0 MPa...6 MPa 0 bar...60 bar 0 psi...870 psi Intermittent load factor 0.66 Measurement accuracy class 1.6 Degree of protection IP65 Storage temperature -40 °C...70 °C Temperature of medium 0 °C...60 °C Ambient temperature 0 °C...60 °C Note on materials RoHS compliant Connection position Centered on rear side Pneumatic connection G1/4 Materials in contact with the media Brass Material of screwed plug Brass Housing material Steel 6/5/26 –
