Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

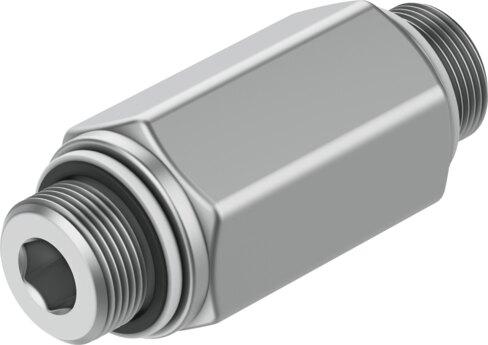

Reference imageConfirm configuration by manufacturer part number.
Festo
11690
Non return valve H-3/8-B
Festo Non return valve H-3/8-B, part number 11690, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 11690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- Non-return function
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Type of mounting
- Screw-in
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- Wrought aluminum alloy, anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Standard nominal ow rate 1->2 (6-5)
- 2000 l/min
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Max. tightening torque
- 20 Nm
- Product weight
- 34 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Official Festo technical specifications
- Valve function Non-return function Pneumatic connection 1 G3/8 Pneumatic connection 2 G3/8 Type of mounting Screw-in Operating pressure 0.04 MPa...1.2 MPa 0.4 bar...12 bar Ambient temperature -10 °C...60 °C Housing material Wrought aluminum alloy, anodized Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Mounting position Any Standard nominal ow rate 1->2 (6-5) 2000 l/min Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -10 °C...60 °C Temperature of medium -10 °C...60 °C Max. tightening torque 20 Nm Product weight 34 g Note on materials RoHS compliant Seals material NBR 6/5/26 –
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11690. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
