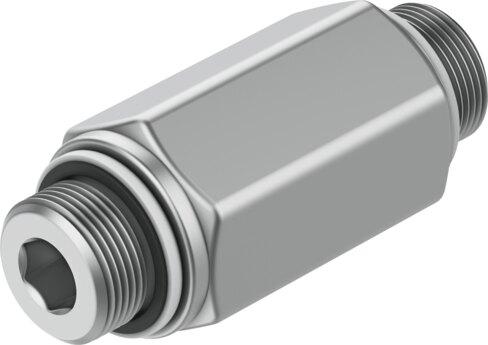

Name: Festo 11691 Non return valve H-1/2-B
Brand: Festo

Non return valve H-1/2-B

The Festo part number 11691 is an industrial component featuring a non-return valve function with G1/2 pneumatic connections on both ports. Built with an anodized wrought aluminum alloy housing and NBR seals, it operates within a pressure range of 0.4 bar to 12 bar and a standard nominal flow rate of 5500 l/min from port 1 to 2. This screw-in unit supports any mounting position, an operating medium of compressed air as per ISO 8573-1:2010 [7:4:4], and an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 11691
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 11691.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Non-return function
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Type of mounting: Screw-in
Operating pressure: 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
Ambient temperature: -10 °C...60 °C
Housing material: Wrought aluminum alloy, anodized
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Mounting position: Any
Standard nominal ow rate 1->2 (6-5): 5500 l/min
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Max. tightening torque: 40 Nm
Product weight: 58.3 g
Note on materials: RoHS compliant
Seals material: NBR
Official Festo technical specifications: Valve function Non-return function Pneumatic connection 1 G1/2 Pneumatic connection 2 G1/2 Type of mounting Screw-in Operating pressure 0.04 MPa...1.2 MPa 0.4 bar...12 bar Ambient temperature -10 °C...60 °C Housing material Wrought aluminum alloy, anodized Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Mounting position Any Standard nominal ow rate 1->2 (6-5) 5500 l/min Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -10 °C...60 °C Temperature of medium -10 °C...60 °C Max. tightening torque 40 Nm Product weight 58.3 g Note on materials RoHS compliant Seals material NBR 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 11691. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
