Festo
1179837

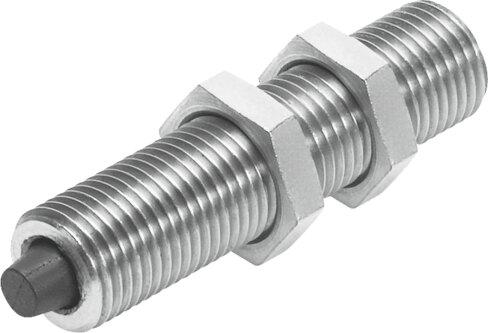

Shock absorber DYEF-M10-Y1
The Festo part number 1179837 is an M10 industrial component featuring a 1 mm stroke and a product weight of 23 g. Constructed with a high-alloy steel housing, NBR seals, and elastic cushioning rings at both ends without a fixed metal stop, it handles a maximum impact velocity of 0.8 m/s and 0.25 J of energy absorption per stroke across an ambient temperature range of 0 °C to 60 °C. This RoHS-compliant unit offers moderate corrosion stress resistance (CRC 2) with VDMA24364-B1/B2-L LABS conformity, accommodates any mounting position via its locknut, and operates without position sensing. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1179837
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1179837.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10
- Stroke
- 1 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1 mm
- Max. energy absorption per stroke
- 0.25 J
- Product weight
- 23 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Official Festo technical specifications
- Size M10 Stroke 1 mm Cushioning Elastic cushioning rings/pads at both ends, without xed metal stop Mounting position Any Position sensing None Max. impact velocity 0.8 m/s Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Cushioning length 1 mm Max. energy absorption per stroke 0.25 J Product weight 23 g Type of mounting With locknut Note on materials RoHS compliant Seals material NBR Housing material High-alloy steel 6/5/26 –
