1179840

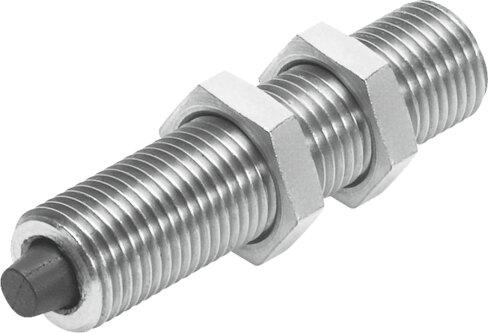

Name: Festo 1179840 Shock absorber DYEF-M12-Y1
Brand: Festo

Shock absorber DYEF-M12-Y1

The Festo 1179840 is an M12 industrial component featuring a 1.2 mm stroke and a product weight of 45.5 g, equipped with elastic cushioning rings at both ends without a fixed metal stop. Constructed with a high-alloy steel housing, NBR seals, and a locknut for mounting, it operates within an ambient temperature range of 0 °C to 60 °C while withstanding a maximum impact velocity of 0.8 m/s and providing 0.35 J of maximum energy absorption per stroke. This RoHS-compliant unit achieves corrosion resistance class 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity for any mounting position without position sensing. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1179840
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1179840.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: M12
Stroke: 1.2 mm
Cushioning: Elastic cushioning rings/pads at both ends, without xed metal stop
Mounting position: Any
Position sensing: None
Max. impact velocity: 0.8 m/s
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Cushioning length: 1.2 mm
Max. energy absorption per stroke: 0.35 J
Product weight: 45.5 g
Type of mounting: With locknut
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel
Official Festo technical specifications: Size M12 Stroke 1.2 mm Cushioning Elastic cushioning rings/pads at both ends, without xed metal stop Mounting position Any Position sensing None Max. impact velocity 0.8 m/s Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Cushioning length 1.2 mm Max. energy absorption per stroke 0.35 J Product weight 45.5 g Type of mounting With locknut Note on materials RoHS compliant Seals material NBR Housing material High-alloy steel 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1179840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
