Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

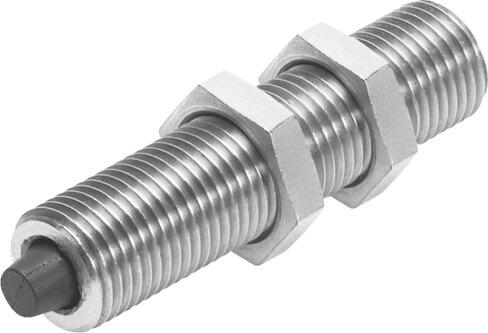

Reference imageConfirm configuration by manufacturer part number.
Festo
1179863
Shock absorber DYEF-M14-Y1
The Festo 1179863 is an M14 industrial component featuring a 1.2 mm stroke and a product weight of 82.5 g, constructed with a high-alloy steel housing and NBR seals. It incorporates elastic cushioning rings at both ends without a fixed metal stop, supporting a maximum impact velocity of 0.8 m/s, a cushioning length of 1.2 mm, and a maximum energy absorption of 0.45 J per stroke. Rated for a moderate corrosion resistance class (CRC 2) and an ambient temperature range of 0 °C to 60 °C, this RoHS compliant unit mounts in any position using the included locknut and is free of position sensing. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1179863
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1179863.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M14
- Stroke
- 1.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1.2 mm
- Max. energy absorption per stroke
- 0.45 J
- Product weight
- 82.5 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Official Festo technical specifications
- Size M14 Stroke 1.2 mm Cushioning Elastic cushioning rings/pads at both ends, without xed metal stop Mounting position Any Position sensing None Max. impact velocity 0.8 m/s Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Cushioning length 1.2 mm Max. energy absorption per stroke 0.45 J Product weight 82.5 g Type of mounting With locknut Note on materials RoHS compliant Seals material NBR Housing material High-alloy steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1179863. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
