Festo
1184697

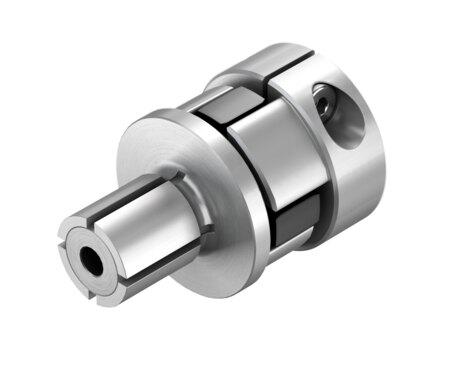

Coupling EAMD-16-15-8-8X10
Engineered by Festo with part number 1184697, this industrial component features an 8 mm diameter for both holder 1 and holder 2, a size 16 designation, and a nominal length of 15 mm. The unit supports any mounting position, a maximum rotational speed of 10000 rpm, a transferable torque of 2 Nm, a mass moment of inertia of 0.355 kgmm², and a product weight of 12 g with RoHS compliance and VDMA24364-B2-L LABS conformity. It operates and is stored within ambient and storage temperatures of -25 °C to 60 °C and handles relative air humidity levels from 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1184697
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1184697.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 8 mm
- Diameter of holder 2
- 8 mm
- Size
- 16
- Nominal length
- 15 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 0.355 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 12 g
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Diameter of holder 1 8 mm Diameter of holder 2 8 mm Size 16 Nominal length 15 mm Mounting position Any Max. rotational speed 10000 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Ambient temperature -25 °C...60 °C Mass moment of inertia 0.355 kgmm² Transferable torque 2 Nm Product weight 12 g Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1184697. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
