Festo
1184858

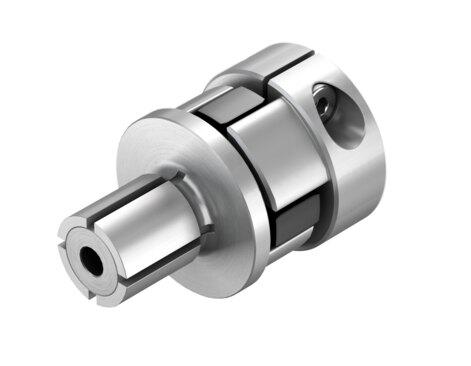

Coupling EAMD-32-32-16-16X20
The Festo industrial component, part number 1184858, features a size 32 design with a nominal length of 32 mm and dual 16 mm holders for holder 1 and holder 2. This unit supports any mounting position, operates at a maximum rotational speed of 8000 rpm, and delivers a transferable torque of 12.5 Nm with a mass moment of inertia of 14.5 kgmm² and a product weight of 123 g. Constructed in compliance with RoHS materials standards, the assembly meets VDMA24364-B2-L LABS conformity and functions within ambient and storage temperature ranges of -25 °C to 60 °C alongside 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1184858
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1184858.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 16 mm
- Diameter of holder 2
- 16 mm
- Size
- 32
- Nominal length
- 32 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 123 g
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Diameter of holder 1 16 mm Diameter of holder 2 16 mm Size 32 Nominal length 32 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Ambient temperature -25 °C...60 °C Mass moment of inertia 14.5 kgmm² Transferable torque 12.5 Nm Product weight 123 g Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1184858. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
