Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

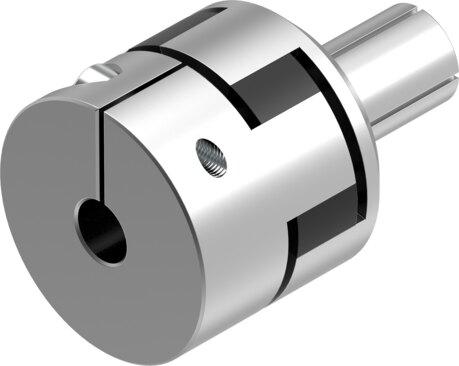

Reference imageConfirm configuration by manufacturer part number.
Festo
1188350
Coupling EAMD-42-40-20-16X25
Engineered by Festo, this industrial component features a size 42 design with a nominal length of 40 mm, incorporating a 20 mm holder 1 diameter and a 16 mm holder 2 diameter. It accommodates any mounting position while delivering a transferable torque of 17 Nm at a maximum rotational speed of 6000 rpm, alongside a mass moment of inertia of 39 kgmm² and a product weight of 189 g. The assembly operates within an ambient and storage temperature range of -25 °C to 60 °C, supports 0 to 95% relative air humidity, complies with RoHS materials standards, and conforms to VDMA24364-B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1188350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1188350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 20 mm
- Diameter of holder 2
- 16 mm
- Size
- 42
- Nominal length
- 40 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 189 g
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Diameter of holder 1 20 mm Diameter of holder 2 16 mm Size 42 Nominal length 40 mm Mounting position Any Max. rotational speed 6000 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Ambient temperature -25 °C...60 °C Mass moment of inertia 39 kgmm² Transferable torque 17 Nm Product weight 189 g Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1188350. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
