Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

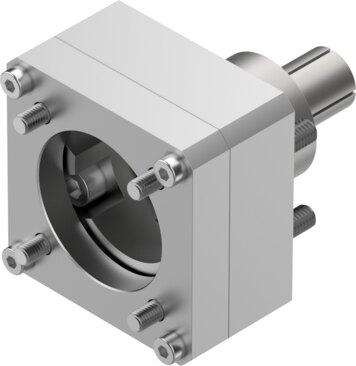

Reference imageConfirm configuration by manufacturer part number.
Festo
1190076
Axial kit EAMM-A-M43-60G
This Festo industrial component, part number 1190076, features a nominal length of 33 mm, an M43 actuator interface code, and a 60G motor-in interface code with a transferable torque of 12.5 Nm. It operates at a maximum rotational speed of 8000 rpm, possesses a mass moment of inertia of 14.5 kgmm², and weighs 340 g with RoHS-compliant materials and VDMA24364-B2-L LABS conformity. Designed with an IP40 degree of protection for any mounting position, the unit functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1190076
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1190076.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 33 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 340 g
- Interface code, actuator
- M43
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 33 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 14.5 kgmm² Transferable torque 12.5 Nm Product weight 340 g Interface code, actuator M43 Interface code, motor in 60G Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1190076. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
