Name: Festo 11909 Quarter turn actuator DSR-12-180-P
Brand: Festo

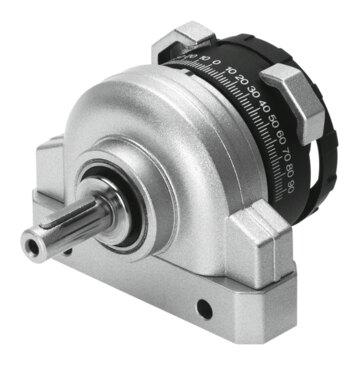

Quarter turn actuator DSR-12-180-P

The Festo 11909 is a double-acting rotary vane industrial component featuring a size 12 design with an adjustable swivel angle ranging from 0 degrees to 180 degrees and a cushioning angle of 2.2 degrees. Operating on compressed air per ISO 8573-1:2010 [7:-:-] at pressures from 0.2 MPa to 0.8 MPa, this unit delivers a theoretical torque of 1 Nm at 6 bar with elastic cushioning rings at both ends and through-hole mounting. It weighs 200 g, supports any mounting position, and accommodates maximum axial and radial forces of 18 N and 45 N respectively within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 11909
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 11909.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 12
Cushioning angle: 2.2 deg
Adjustment range of swivel angle: 0 deg...180 deg
Swivel angle: 0 deg...180 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: None
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Max. axial force: 18 N
Max. radial force: 45 N
Theoretical torque at 6 bar: 1 Nm
Product weight: 200 g
Type of mounting: With through-hole
Pneumatic connection: M5
Covering material: PA-reinforced
Drive shaft material: Steel | Nickel-plated
Seals material: NBR
Housing material: Die-cast zinc
Official Festo technical specifications: Size 12 Cushioning angle 2.2 deg Adjustment range of swivel angle 0 deg...180 deg Swivel angle 0 deg...180 deg Cushioning Elastic cushioning rings/pads at both ends Mounting position Any Mode of operation Double-acting Structural design Rotary vane Position sensing None Operating pressure 0.2 MPa...0.8 MPa 2 bar...8 bar Max. swivel frequency at 6 bar 3 Hz Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -10 °C...60 °C Max. axial force 18 N Max. radial force 45 N Theoretical torque at 6 bar 1 Nm Product weight 200 g Type of mounting With through-hole Pneumatic connection M5 Covering material PA-reinforced Drive shaft material Steel Nickel-plated Seals material NBR Housing material Die-cast zinc 6/5/26 –
