Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

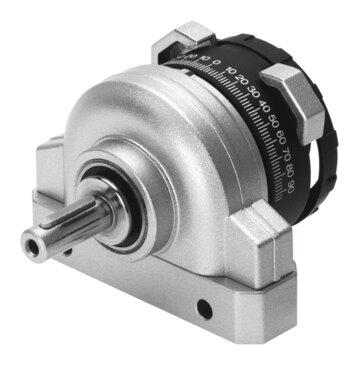

Reference imageConfirm configuration by manufacturer part number.
Festo
11912
Quarter turn actuator DSR-32-180-P
The Festo part number 11912 is a size 32 double-acting rotary vane industrial component featuring an adjustable swivel angle range from 0 to 180 degrees with a 1.2-degree cushioning angle. This unit operates on compressed air complying with ISO 8573-1:2010 [7:-:-] at pressures between 0.15 MPa and 0.8 MPa, delivering a theoretical torque of 10 Nm at 6 bar and a maximum swivel frequency of 3 Hz. Weighing 1300 g, it incorporates elastic cushioning rings at both ends, accommodates through-hole mounting in any position with a G1/8 pneumatic connection, and withstands a maximum axial force of 75 N and radial force of 200 N within ambient temperatures of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11912
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11912.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning angle
- 1.2 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 75 N
- Max. radial force
- 200 N
- Theoretical torque at 6 bar
- 10 Nm
- Product weight
- 1300 g
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
- Official Festo technical specifications
- Size 32 Cushioning angle 1.2 deg Adjustment range of swivel angle 0 deg...180 deg Swivel angle 0 deg...180 deg Cushioning Elastic cushioning rings/pads at both ends Mounting position Any Mode of operation Double-acting Structural design Rotary vane Position sensing None Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Max. swivel frequency at 6 bar 3 Hz Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -10 °C...60 °C Max. axial force 75 N Max. radial force 200 N Theoretical torque at 6 bar 10 Nm Product weight 1300 g Type of mounting With through-hole Pneumatic connection G1/8 Covering material PA-reinforced Drive shaft material Steel Nickel-plated Seals material NBR Housing material Die-cast zinc 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11912. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
