Festo
11944

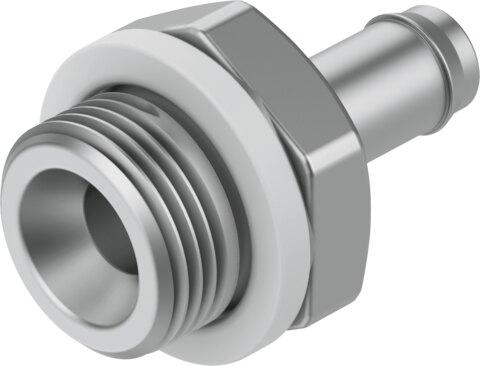

Barb fitting CN-1/8-PK-3
This Festo industrial component, part number 11944, features a nominal width of 2.5 mm, an external thread G1/8 pneumatic connection 1, and a pneumatic connection 2 for tubing with a 4 mm outside diameter. Constructed with an aluminum housing and a sealing ring on the screwed plug, it operates within a pressure range of -0.95 bar to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:-:-] at ambient temperatures from 0 °C to 60 °C. The unit achieves a corrosion resistance class of CRC 2, adheres to VDMA24364-B1/B2-L LABS conformity, and complies with RoHS material regulations while permitting oil-lubricated operation. Submit part number 11944, your required quantity, and application parameters to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11944
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11944.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.5 mm
- Type of seal on screwed plug
- Sealing ring
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Note on materials
- RoHS compliant
- Housing material
- Aluminum
- Official Festo technical specifications
- Nominal width 2.5 mm Type of seal on screwed plug Sealing ring Operating pressure for entire temperature range -0.95 bar...10 bar Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Pneumatic connection 1 External thread G1/8 Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Note on materials RoHS compliant Housing material Aluminum 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11944. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
