Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
11955

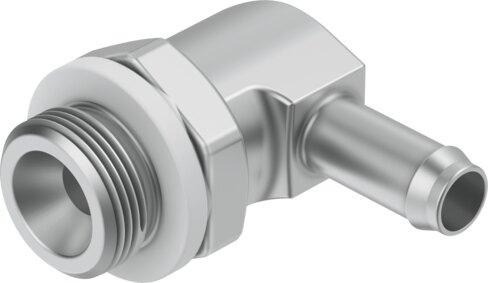

Barbed elbow fitting LCN-1/8-PK-3
The Festo part number 11955 is an industrial component featuring a nominal width of 2 mm, an external thread G1/8 pneumatic connection 1, and a pneumatic connection 2 for 4 mm outside diameter pneumatic tubing. Designed with a die-cast zinc and aluminum housing providing a corrosion resistance class of CRC 2, it operates within a temperature range of 0 °C to 60 °C and an operating pressure of -0.95 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:-:-]. This RoHS-compliant unit requires oil lubrication for further operation and incorporates a sealing ring type of seal on the screwed plug. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Type of seal on screwed plug
- Sealing ring
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Note on materials
- RoHS compliant
- Housing material
- Aluminum | Die-cast zinc
- Official Festo technical specifications
- Nominal width 2 mm Type of seal on screwed plug Sealing ring Operating pressure for entire temperature range -0.95 bar...10 bar Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Pneumatic connection 1 External thread G1/8 Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Note on materials RoHS compliant Housing material Aluminum Die-cast zinc 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11955. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
