Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

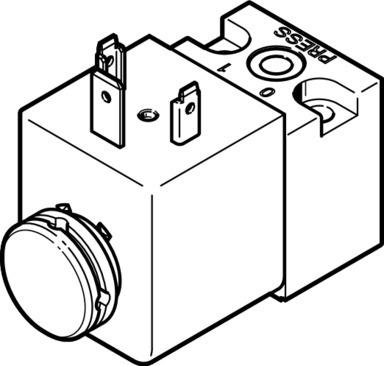

Reference imageConfirm configuration by manufacturer part number.
Festo
119600
Pilot valve MDH-3/2-24DC
The Festo part number 119600 is a 3/2-way closed, monostable electrical industrial component featuring a direct control type, soft sealing principle, and a plate seat structural design with a 1.3 mm nominal width. Operating at 24V DC or 48V AC, this 30 mm wide unit delivers a normal nominal flow rate of 50 l/min across an operating pressure range of 0.1 MPa to 1.6 MPa (1 bar to 16 bar / 14.5 psi to 232 psi) and incorporates an IP65 degree of protection, mechanical spring reset, and non-detenting manual override. Built on ISO 15218 standards with a 42 mm width dimension, non-throttled exhaust air function, and non-reversible flow direction, it supports any mounting position via a size 30 mm sub-base pneumatic working port. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 119600
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 119600.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 30 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic working port
- Sub-base, size 30 mm as per ISO 15218
- Operating voltage
- 24V DC | 48V AC
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar | 14.5 psi...232 psi
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 1.3 mm
- Width dimension
- 42 mm
- Exhaust air function
- Cannot be throttled
- Based on norm
- ISO 15218
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15218
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 9 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 6.8 W | 48 V AC: 50 Hz, initial power 14.5 VA, holding power 9.9 VA | 53 V AC: 60 Hz, initial power 15.0 VA, holding power 9.3 VA
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Official Festo technical specifications
- Valve function 3/2-way, closed, monostable Actuation type Electrical Width 30 mm Normal nominal ow rate (normalized to DIN 1343) 50 l/min Pneumatic working port Sub-base, size 30 mm as per ISO 15218 Operating voltage 24V DC 48V AC Operating pressure 0.1 MPa...1.6 MPa 1 bar...16 bar 14.5 psi...232 psi Structural design Plate seat Reset method Mechanical spring Degree of protection IP65 Nominal width 1.3 mm Width dimension 42 mm Exhaust air function Cannot be throttled Based on norm ISO 15218 Sealing principle Soft Mounting position Any Conforms to standard ISO 15218 Manual override Non-detenting Type of control directly Flow direction Non-reversible Lap Negative overlap Switching time off 9 ms On switching time 11 ms Duty cycle 100% Coil characteristics 24 V DC: 6.8 W 48 V AC: 50 Hz, initial power 14.5 VA, holding power 9.9 VA 53 V AC: 60 Hz, initial power 15.0 VA, holding power 9.3 VA Permissible voltage uctuations +/- 10% Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 119600. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
