119602

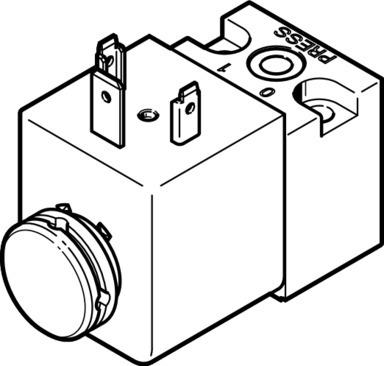

Name: Festo 119602 Pilot valve MDH-3/2-230VAC
Brand: Festo

Pilot valve MDH-3/2-230VAC

This Festo 119602 industrial component is a 3/2-way closed, monostable valve featuring an electrical actuation type, a plate seat structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 50 l/min through a 1.3 mm nominal width, operating across a pressure range of 0.1 MPa to 1.6 MPa (1 bar to 16 bar / 14.5 psi to 232 psi) at 110V DC or 230V AC. Built with an IP65 degree of protection, non-detenting manual override, and mechanical spring reset, the 30 mm wide unit connects via a sub-base size 30 mm per ISO 15218 and includes CE and UKCA markings. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 119602
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 119602.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 30 mm
Normal nominal ow rate (normalized to DIN 1343): 50 l/min
Pneumatic working port: Sub-base, size 30 mm as per ISO 15218
Operating voltage: 110V DC | 230V AC
Operating pressure: 0.1 MPa...1.6 MPa | 1 bar...16 bar | 14.5 psi...232 psi
Structural design: Plate seat
Reset method: Mechanical spring
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Degree of protection: IP65
Nominal width: 1.3 mm
Width dimension: 42 mm
Exhaust air function: Cannot be throttled
Based on norm: ISO 15218
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 15218
Manual override: Non-detenting
Type of control: directly
Flow direction: Non-reversible
Lap: Negative overlap
Switching time oﬀ: 9 ms
On switching time: 11 ms
Duty cycle: 100%
Coil characteristics: 110 V DC: 6.3 W | 230 V AC: 50 Hz, initial power 14.5 VA, holding power 10.5 VA | 230 V AC: 60 Hz, initial power 12.0 VA, holding power 7.6 VA
Permissible frequency uctuations: +/- 10%
Official Festo technical specifications: Valve function 3/2-way, closed, monostable Actuation type Electrical Width 30 mm Normal nominal ow rate (normalized to DIN 1343) 50 l/min Pneumatic working port Sub-base, size 30 mm as per ISO 15218 Operating voltage 110V DC 230V AC Operating pressure 0.1 MPa...1.6 MPa 1 bar...16 bar 14.5 psi...232 psi Structural design Plate seat Reset method Mechanical spring CE marking (see declaration of conformity) As per EU low voltage directive UKCA marking (see declaration of conformity) To UK instructions for electrical equipment Degree of protection IP65 Nominal width 1.3 mm Width dimension 42 mm Exhaust air function Cannot be throttled Based on norm ISO 15218 Sealing principle Soft Mounting position Any Conforms to standard ISO 15218 Manual override Non-detenting Type of control directly Flow direction Non-reversible Lap Negative overlap Switching time oﬀ 9 ms On switching time 11 ms Duty cycle 100% Coil characteristics 110 V DC: 6.3 W 230 V AC: 50 Hz, initial power 14.5 VA, holding power 10.5 VA 230 V AC: 60 Hz, initial power 12.0 VA, holding power 7.6 VA Permissible frequency uctuations +/- 10% 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 119602. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
