Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
11968

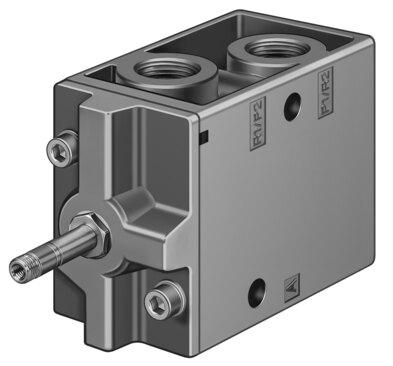

Air solenoid valve MFH-3-3/4-S
The Festo part number 11968 is an electrical, piloted 3/2-way closed monostable industrial component with a plate seat structural design and a nominal width of 19 mm. It features a normal nominal flow rate of 7500 l/min through G3/4 pneumatic working ports, an operating pressure range of -0.095 MPa to 1 MPa, and an IP65 degree of protection with a soft sealing principle. Additional verified attributes include an adjustable exhaust air function, a mechanical spring reset method, a detenting manual override, external pilot air supply, and c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11968
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11968.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 68 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 7500 l/min
- Pneumatic working port
- G3/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 19 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.1 MPa...0.8 MPa
- Pilot pressure
- 1 bar...8 bar
- Switching time off
- 32 ms
- On switching time
- 36 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Official Festo technical specifications
- Valve function 3/2-way, closed, monostable Actuation type Electrical Width 68 mm Normal nominal ow rate (normalized to DIN 1343) 7500 l/min Pneumatic working port G3/4 Operating voltage Via solenoid coil, to be ordered separately Operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 19 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Pilot air supply port External Flow direction Reversible Lap Negative overlap Pilot pressure MPa 0.1 MPa...0.8 MPa Pilot pressure 1 bar...8 bar Switching time off 32 ms On switching time 36 ms Max. positive test pulse with 0 signal 2200 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C...60 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11968. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
