Festo
11969

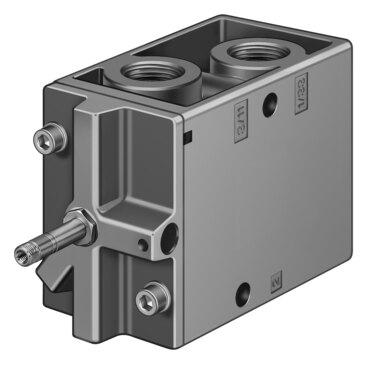

Air solenoid valve MOFH-3-3/4
The Festo part number 11969 is an electrical 3/2-way monostable open industrial component featuring a 68 mm width, a plate seat structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 7500 l/min through G3/4 pneumatic working ports within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar). Operating voltage is supplied via a solenoid coil ordered separately, while the unit includes a mechanical spring reset, adjustable exhaust air function, internal pilot air supply, and c UL us - recognized (OL) certification with an IP65 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11969
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11969.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 68 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 7500 l/min
- Pneumatic working port
- G3/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 19 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 29 ms
- On switching time
- 40 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Official Festo technical specifications
- Valve function 3/2-way, monostable, open Actuation type Electrical Width 68 mm Normal nominal ow rate (normalized to DIN 1343) 7500 l/min Pneumatic working port G3/4 Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.2 MPa...0.8 MPa 2 bar...8 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 19 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Pilot air supply port Internal Flow direction Non-reversible Lap Negative overlap Switching time off 29 ms On switching time 40 ms Max. positive test pulse with 0 signal 2200 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Ambient temperature -5 °C...40 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11969. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
