Festo
11973

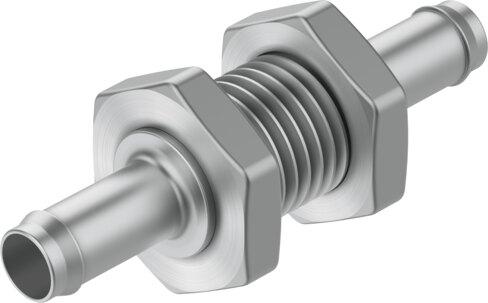

Barbed bulkhead connector SCN-PK-4
The Festo 11973 industrial component features a nominal width of 2.8 mm and operates across a pressure range of -0.95 bar to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Designed with an aluminum housing, galvanized steel nut, and connection for 6 mm outside diameter pneumatic tubing, this unit functions within an ambient temperature range of 0 °C to 60 °C and accommodates oil lubrication. RoHS compliant and meeting VDMA24364-B1/B2-L LABS conformity, this part requires oil lubrication for continued use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11973
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11973.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.8 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- Aluminum
- Nut material
- Steel, galvanized
- Official Festo technical specifications
- Nominal width 2.8 mm Operating pressure for entire temperature range -0.95 bar...10 bar Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Pneumatic connection 1 For pneumatic tubing outside diameter 6 mm Note on materials RoHS compliant Housing material Aluminum Nut material Steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11973. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
