Festo
1201591

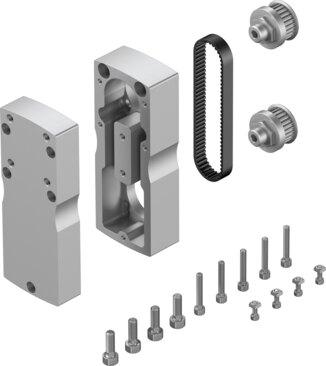

Parallel kit EAMM-U-50-D32-40A-78
This Festo industrial component, part number 1201591, features a size 50 configuration with a 1:1 gear ratio, a transferable torque of 1 Nm, and a maximum rotational speed of 6000 rpm. Weighing 600 g with a mass moment of inertia of 12.1 kgmm² and a no-load driving torque of 0.01 Nm, the unit includes an actuator interface code of D32B and a motor input interface code of 40A. Built to IP40 protection standards with VDMA24364 Zone III LABS conformity and RoHS-compliant materials, it operates in ambient temperatures from -10 °C to 60 °C and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1201591
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1201591.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 12.1 kgmm²
- No-load driving torque
- 0.01 Nm
- Transferable torque
- 1 Nm
- Product weight
- 600 g
- Interface code, actuator
- D32B
- Interface code, motor in
- 40A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 50 Mounting position Any Gear ratio 1:1 Max. rotational speed 6000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 12.1 kgmm² No-load driving torque 0.01 Nm Transferable torque 1 Nm Product weight 600 g Interface code, actuator D32B Interface code, motor in 40A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1201591. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
