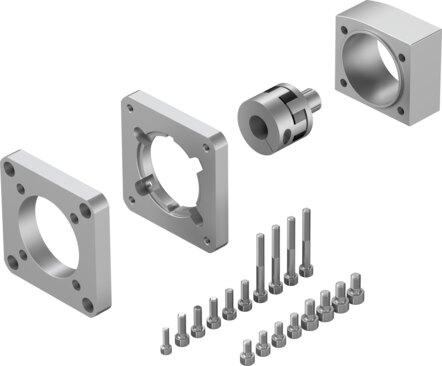

Reference imageConfirm configuration by manufacturer part number.
Festo
1201695
Axial kit EAMM-A-N80-120G
The Festo industrial component, part number 1201695, is designed with a nominal length of 77.5 mm, a product weight of 1990 g, and an N80 actuator interface alongside a 120G motor-in interface. It features a transferable torque of 47 Nm, a mass moment of inertia of 151 kgmm², and a maximum rotational speed of 5500 rpm while maintaining an IP40 degree of protection and VDMA24364-B2-L LABS conformity. This RoHS-compliant unit operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C, accommodates 0 to 95% relative air humidity, and allows any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1201695
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1201695.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 77.5 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1990 g
- Interface code, actuator
- N80
- Interface code, motor in
- 120G
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 77.5 mm Mounting position Any Max. rotational speed 5500 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 151 kgmm² Transferable torque 47 Nm Product weight 1990 g Interface code, actuator N80 Interface code, motor in 120G Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1201695. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
