Festo
1202253

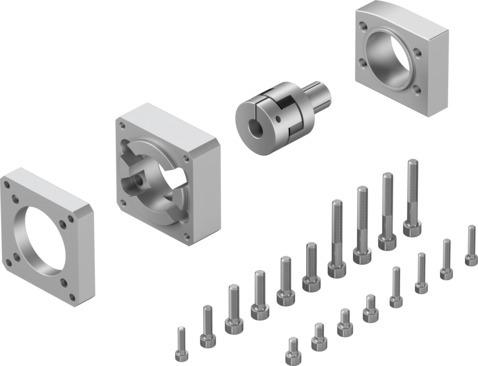

Axial kit EAMM-A-N38-60G
Engineered by Festo with part number 1202253, this industrial component features a nominal length of 49.5 mm, a product weight of 470 g, and a transferable torque of 12.5 Nm at a maximum rotational speed of 8000 rpm. The unit includes an actuator interface code of N38, a motor input interface code of 60G, and a mass moment of inertia of 14.5 kgmm², operating with an IP40 degree of protection across an ambient temperature range of -10 °C to 60 °C. It conforms to VDMA24364-B2-L LABS (PWIS) standards, incorporates RoHS-compliant materials, and supports any mounting position within relative air humidity levels of 0 to 95% and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1202253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1202253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 49.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 470 g
- Interface code, actuator
- N38
- Interface code, motor in
- 60G
- Note on materials
- RoHS-compliant
- Official Festo technical specifications
- Nominal length 49.5 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95 % Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 14.5 kgmm² Transferable torque 12.5 Nm Product weight 470 g Interface code, actuator N38 Interface code, motor in 60G Note on materials RoHS-compliant Jul 9, 2025 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1202253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
