Festo
1202436

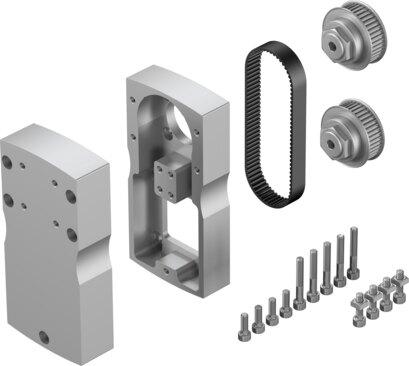

Parallel kit EAMM-U-110-D60-100A-120
The Festo 110 industrial component features a 1:1 gear ratio, a transferable torque of 25 Nm, and a maximum rotational speed of 5000 rpm. Weighing 4950 g with a mass moment of inertia of 799 kgmm², this unit includes a D60B actuator interface code and a 100A motor-in interface code while complying with VDMA24364 Zone III LABS conformity and RoHS material standards. Operating within an ambient temperature range of -10 °C to 60 °C and an IP40 degree of protection, it supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1202436
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1202436.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 25 Nm
- Product weight
- 4950 g
- Interface code, actuator
- D60B
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 110 Mounting position Any Gear ratio 1:1 Max. rotational speed 5000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 799 kgmm² No-load driving torque 0.3 Nm Transferable torque 25 Nm Product weight 4950 g Interface code, actuator D60B Interface code, motor in 100A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1202436. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
