Festo
1205862

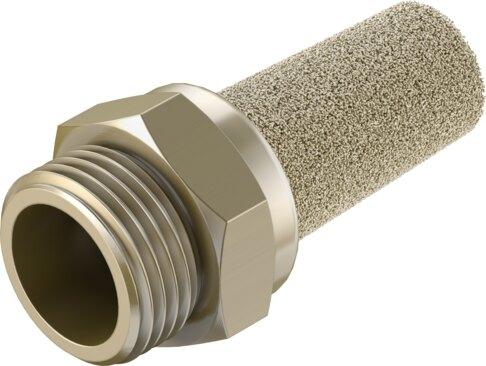

Pneumatic muffler AMTE-M-LH-G38
Engineered with a G3/8 pneumatic connection, this Festo industrial component operates at pressures from 0 to 10 bar with a flow rate of 5430 l/min with respect to the atmosphere. The unit features a brass screwed plug and a bronze cushioning insert, while supporting ATEX explosion prevention and protection for Zones 1, 2, 21, and 22 within an ambient temperature range of -40 °C to 80 °C. Each pack contains 10 RoHS-compliant units, weighing 26 g each and designed for compressed air media in accordance with ISO 8573-1:2010 [7:-:-]. Submit part number 1205862 with your required quantity and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1205862
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1205862.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 5430 l/min
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 82 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 26 g
- Pneumatic connection
- G3/8
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 10 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 5430 l/min Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Noise level 82 dB(A) Ambient temperature -40 °C...80 °C Product weight 26 g Pneumatic connection G3/8 Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1205862. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
