Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1205863

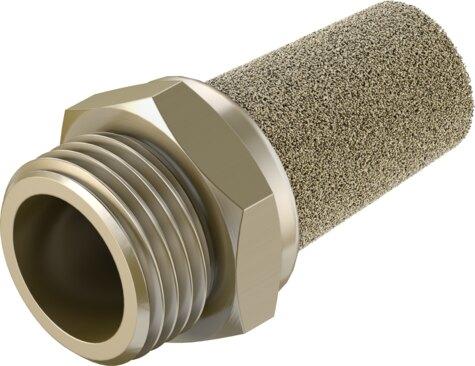

Pneumatic muffler AMTE-M-LH-G12
This Festo industrial component, part number 1205863, features a G1/2 pneumatic connection, brass screwed plug, and bronze cushioning insert, operating within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar). It delivers a flow rate of 10500 l/min with respect to the atmosphere while maintaining a noise level of 88 dB(A) across an ambient temperature range of -40 °C to 80 °C. Rated with ATEX explosion protection for Zones 1, 2, 21, and 22, the unit supports compressed air operating media according to ISO 8573-1:2010 [7:-:-] with lubricated operation capability and comes in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1205863
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1205863.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 10500 l/min
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 88 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 43 g
- Pneumatic connection
- G1/2
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 10 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 10500 l/min Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Noise level 88 dB(A) Ambient temperature -40 °C...80 °C Product weight 43 g Pneumatic connection G1/2 Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1205863. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
