Festo
1205865

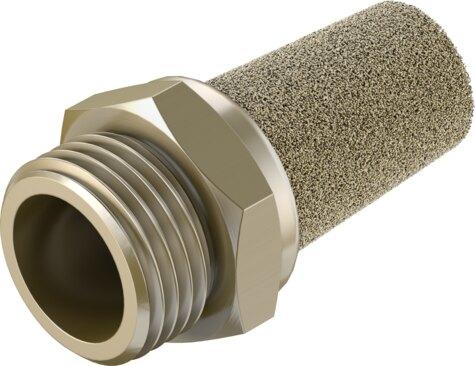

Pneumatic muffler AMTE-M-LH-G1
Engineered with a brass screwed plug and a bronze cushioning insert, this Festo industrial component features a G1 pneumatic connection and supports any mounting position. The part operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and delivers a flow rate of 17235 l/min with respect to the atmosphere while maintaining an 88 dB(A) noise level across ambient temperatures from -40 °C to 80 °C. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention, the RoHS-compliant unit accommodates compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. Submit the exact part number, quantity, and application requirements for a formal quote on this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1205865
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1205865.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 17235 l/min
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 88 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 115 g
- Pneumatic connection
- G1
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 10 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 17235 l/min Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Noise level 88 dB(A) Ambient temperature -40 °C...80 °C Product weight 115 g Pneumatic connection G1 Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
