1206622

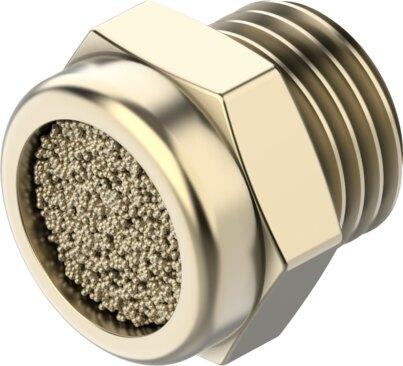

Name: Festo 1206622 Pneumatic muffler AMTE-M-H-G18
Brand: Festo

Pneumatic muffler AMTE-M-H-G18

The Festo part number 1206622 is an industrial component featuring a G1/8 pneumatic connection, a brass screwed plug, and a bronze cushioning insert with a product weight of 5 g. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and delivers a flow rate of 615 l/min with respect to atmosphere while generating a noise level of 92 dB(A). Built for any mounting position within an ambient temperature range of -40 °C to 80 °C, this RoHS-compliant component provides ATEX explosion prevention and protection for Zone 1, Zone 2, Zone 21, and Zone 22, and supports lubricated operation with a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity in pack sizes of 20, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1206622
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1206622.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Pack size: 20
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Flow rate with respect to atmosphere: 615 l/min
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Noise level: 92 dB(A)
Ambient temperature: -40 °C...80 °C
Product weight: 5 g
Pneumatic connection: G1/8
Cushioning insert material: Bronze
Material of screwed plug: Brass
Note on materials: RoHS compliant
Official Festo technical specifications: Mounting position Any Pack size 20 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 615 l/min Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Noise level 92 dB(A) Ambient temperature -40 °C...80 °C Product weight 5 g Pneumatic connection G1/8 Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1206622. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
