Festo
1206625

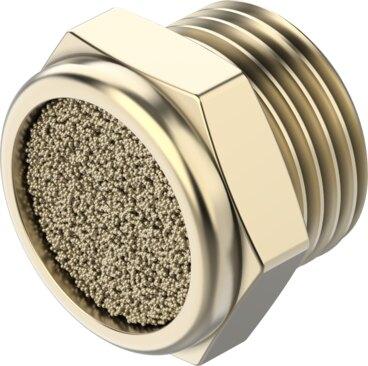

Pneumatic muffler AMTE-M-H-G12
The Festo part number 1206625 is an industrial component featuring a G1/2 pneumatic connection, a brass screwed plug, and a bronze cushioning insert with a product weight of 30 g. It operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), delivers a flow rate with respect to atmosphere of 2745 l/min, and supports an ambient temperature range of -40 °C to 80 °C with a noise level of 92 dB(A). Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection, this RoHS-compliant component is designed for compressed air media as per ISO 8573-1:2010 [7:-:-] and allows lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1206625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1206625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 2745 l/min
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 92 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 30 g
- Pneumatic connection
- G1/2
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 10 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 2745 l/min Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Noise level 92 dB(A) Ambient temperature -40 °C...80 °C Product weight 30 g Pneumatic connection G1/2 Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1206625. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
