Festo
1206989

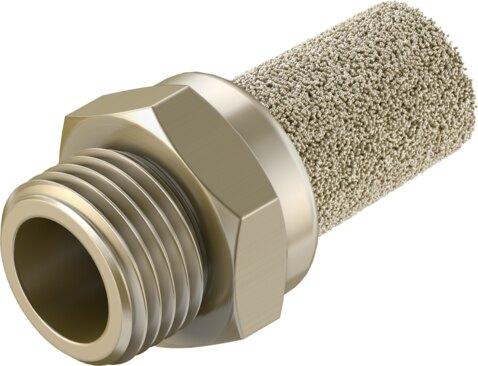

Pneumatic muffler AMTE-M-LH-N18
The Festo 1206989 is an industrial component featuring a 1/8 NPT pneumatic connection, a bronze cushioning insert, and a brass screwed plug with a RoHS-compliant material design. It operates within a pressure range of 0 bar to 10 bar (0 MPa to 1 MPa), delivers a flow rate of 1615 l/min with respect to atmosphere, and functions with compressed air conforming to ISO 8573-1:2010 [7:-:-] while supporting lubricated operation. This unit weighs 9 g, has a corrosion resistance class of 1 for low corrosion stress, complies with VDMA24364-B2-L LABS conformity, generates a noise level of 77 dB(A), and functions in ambient temperatures from -40 °C to 80 °C in any mounting position. Supplied in a pack size of 20, submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1206989
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1206989.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 20
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 1615 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Noise level
- 77 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 9 g
- Pneumatic connection
- 1/8 NPT
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 20 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 1615 l/min Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Noise level 77 dB(A) Ambient temperature -40 °C...80 °C Product weight 9 g Pneumatic connection 1/8 NPT Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1206989. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
