Festo
1206990

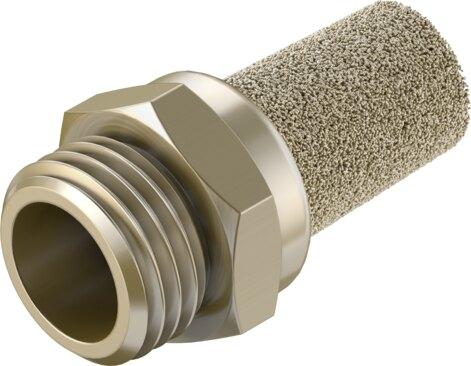

Pneumatic muffler AMTE-M-LH-N14
This Festo industrial component, part number 1206990, features a 1/4 NPT pneumatic connection, a bronze cushioning insert material, and a brass screwed plug with RoHS compliance. It operates at a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and delivers a flow rate of 3080 l/min with respect to the atmosphere while maintaining an 82 dB(A) noise level. The unit supports any mounting position, an ambient temperature range of -40 °C to 80 °C, compressed air operating medium as per ISO 8573-1:2010 [7:-:-], and lubricated operation with a product weight of 17 g, a corrosion resistance class of 1, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1206990
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1206990.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 20
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 3080 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Noise level
- 82 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 17 g
- Pneumatic connection
- 1/4 NPT
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 20 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 3080 l/min Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Noise level 82 dB(A) Ambient temperature -40 °C...80 °C Product weight 17 g Pneumatic connection 1/4 NPT Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1206990. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
