Festo
1206991

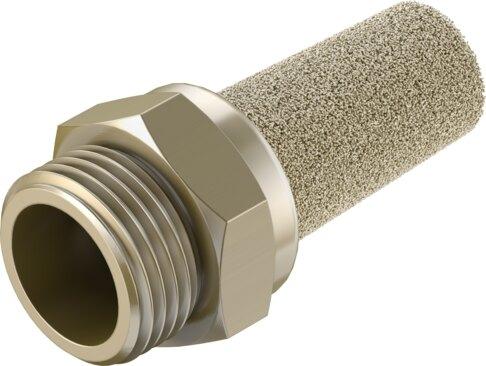

Pneumatic muffler AMTE-M-LH-N38
The Festo industrial component, part number 1206991, operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and supports a flow rate of 5365 l/min with respect to the atmosphere. Featuring a 3/8 NPT pneumatic connection, a bronze cushioning insert, and a brass screwed plug, this 29 g RoHS-compliant part functions in ambient temperatures from -40 °C to 80 °C with a noise level of 83 dB(A). It offers any mounting position, a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and permits lubricated operation. Submit your exact part number, quantity, and application requirements to receive a quote for this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1206991
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1206991.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 5365 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Noise level
- 83 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 29 g
- Pneumatic connection
- 3/8 NPT
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 10 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 5365 l/min Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Noise level 83 dB(A) Ambient temperature -40 °C...80 °C Product weight 29 g Pneumatic connection 3/8 NPT Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1206991. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
