Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1206994

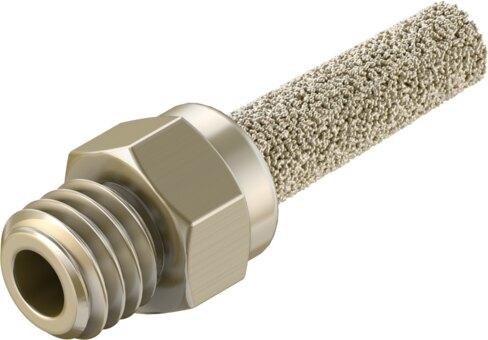

Pneumatic muffler AMTE-M-LH-U10
Engineered with a brass screwed plug and a bronze cushioning insert, this Festo industrial component features a 10-32 UNF-2A pneumatic connection and operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar). It delivers a flow rate of 260 l/min with respect to atmosphere while generating a noise level of 71 dB(A) across an ambient temperature range of -40 °C to 80 °C. The unit supports compressed air operating media according to ISO 8573-1:2010 [7:-:-] with optional lubricated operation, carries a CRC rating of 1, and conforms to VDMA24364-B2-L LABS standards at a product weight of 1.7 g. Submit part number 1206994 with your required quantity and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1206994
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1206994.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 20
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 260 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Noise level
- 71 dB(A)
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 1.7 g
- Pneumatic connection
- 10-32 UNF-2A
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Mounting position Any Pack size 20 Operating pressure 0 MPa...1 MPa 0 bar...10 bar Flow rate with respect to atmosphere 260 l/min Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Noise level 71 dB(A) Ambient temperature -40 °C...80 °C Product weight 1.7 g Pneumatic connection 10-32 UNF-2A Cushioning insert material Bronze Material of screwed plug Brass Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1206994. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
