Festo
1210442

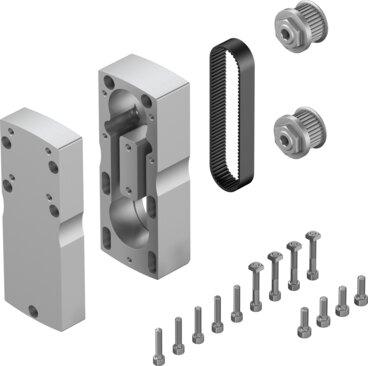

Parallel kit EAMM-U-60-D40-57A-91
The Festo part number 1210442 is a Size 60 industrial component featuring a 1:1 gear ratio, a transferable torque of 3 Nm, and a maximum rotational speed of 6000 rpm. This RoHS compliant unit incorporates a mass moment of inertia of 26.7 kgmm², a no-load driving torque of 0.07 Nm, an actuator interface code of D40B, and a motor-in interface code of 57A with an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C, it supports any mounting position and complies with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1210442
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1210442.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1140 g
- Interface code, actuator
- D40B
- Interface code, motor in
- 57A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 60 Mounting position Any Gear ratio 1:1 Max. rotational speed 6000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 26.7 kgmm² No-load driving torque 0.07 Nm Transferable torque 3 Nm Product weight 1140 g Interface code, actuator D40B Interface code, motor in 57A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1210442. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
