Festo
1217373

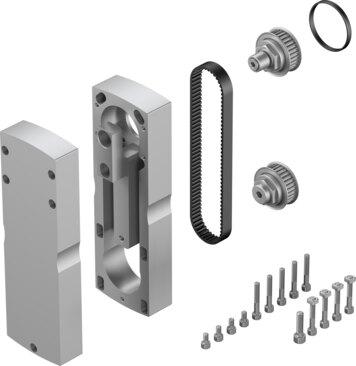

Parallel kit EAMM-U-86-S62-87A-177
Engineered with a 1:1 gear ratio and a size 86 frame, this Festo industrial component delivers a transferable torque of 9.5 Nm at a maximum rotational speed of 5000 rpm. The unit features an actuator interface code S62, a motor input interface code 87A, a mass moment of inertia of 175 kgmm², and a no-load driving torque of 0.25 Nm. Weighing 3330 g with IP40 protection and VDMA24364 Zone III LABS conformity, the RoHS-compliant assembly supports any mounting position and operates within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1217373
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1217373.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 3330 g
- Interface code, actuator
- S62
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 86 Mounting position Any Gear ratio 1:1 Max. rotational speed 5000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 175 kgmm² No-load driving torque 0.25 Nm Transferable torque 9.5 Nm Product weight 3330 g Interface code, actuator S62 Interface code, motor in 87A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1217373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
