Festo
1217381

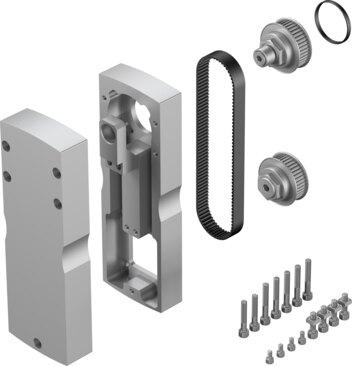

Parallel kit EAMM-U-110-S62-100A-207
This Festo industrial component, part number 1217381, is a size 110 unit featuring a 1:1 gear ratio, a transferable torque of 25 Nm, and a maximum rotational speed of 5000 rpm. Weighing 6900 g with a mass moment of inertia of 799 kgmm², the assembly incorporates an actuator interface code S62, a motor input interface code 100A, and achieves IP40 protection alongside VDMA24364 Zone III LABS conformity. It operates within ambient temperatures from -10 °C to 60 °C, withstands storage temperatures from -25 °C to 60 °C, supports a relative air humidity of 0 to 95 percent, and features RoHS-compliant materials in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1217381
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1217381.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 25 Nm
- Product weight
- 6900 g
- Interface code, actuator
- S62
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 110 Mounting position Any Gear ratio 1:1 Max. rotational speed 5000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 799 kgmm² No-load driving torque 0.3 Nm Transferable torque 25 Nm Product weight 6900 g Interface code, actuator S62 Interface code, motor in 100A Note on materials RoHS compliant 6/5/26 –
