Festo
1218568

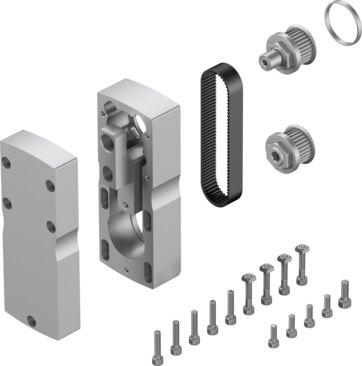

Parallel kit EAMM-U-60-S38-57A-91
Engineered by Festo, part number 1218568 is a Size 60 industrial component featuring a 1:1 gear ratio, a transferable torque of 3 Nm, and a maximum rotational speed of 6000 rpm. This unit includes an actuator interface code of S38, a motor input interface code of 57A, a mass moment of inertia of 26.7 kgmm², and a no-load driving torque of 0.07 Nm with an IP40 degree of protection. Built with RoHS-compliant materials and conforming to VDMA24364 Zone III LABS standards, the 1090 g component operates within an ambient temperature range of -10 °C to 60 °C and any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1218568
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1218568.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1090 g
- Interface code, actuator
- S38
- Interface code, motor in
- 57A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Size 60 Mounting position Any Gear ratio 1:1 Max. rotational speed 6000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 26.7 kgmm² No-load driving torque 0.07 Nm Transferable torque 3 Nm Product weight 1090 g Interface code, actuator S38 Interface code, motor in 57A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1218568. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
