Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.

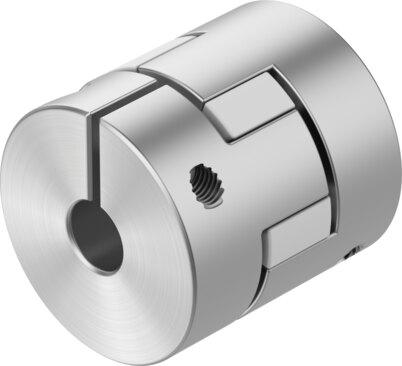

Festo
123041
Coupling EAMC-30-35-6-8
The Festo industrial component, part number 123041, features a size 30 designation with a nominal length of 35 mm and a product weight of 45 g. This assembly accommodates a 6 mm diameter for holder 1 and an 8 mm diameter for holder 2, supporting any mounting position and a maximum rotational speed of 8000 rpm. It delivers a transferable torque of 7.5 Nm and a mass moment of inertia of 6.1 kgmm², operating within an ambient and storage temperature range of -25 °C to 60 °C at 0 to 95% relative air humidity. Complying with VDMA24364-B2-L LABS conformity and RoHS material directives, this unit is ready for specification. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 123041
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 123041.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 6 mm
- Diameter of holder 2
- 8 mm
- Size
- 30
- Nominal length
- 35 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 6.1 kgmm²
- Transferable torque
- 7.5 Nm
- Product weight
- 45 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 123041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
