Festo
123052

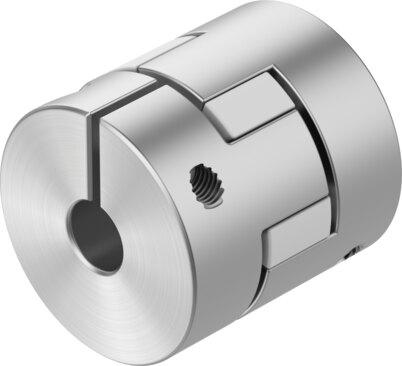

Coupling EAMC-30-35-12-12
The Festo 123052 is an industrial component featuring a size 30 designation, a nominal length of 35 mm, and dual 12 mm holders with a mass moment of inertia of 6.1 kgmm². Weighing 45 g and compliant with RoHS materials notes and VDMA24364-B2-L LABS conformity, this RoHS-compliant part supports any mounting position, a maximum rotational speed of 8000 rpm, and a transferable torque of 9.5 Nm within ambient and storage temperatures of -25 °C to 60 °C and relative air humidity from 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 123052
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 123052.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 12 mm
- Diameter of holder 2
- 12 mm
- Size
- 30
- Nominal length
- 35 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 6.1 kgmm²
- Transferable torque
- 9.5 Nm
- Product weight
- 45 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 123052. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
