Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

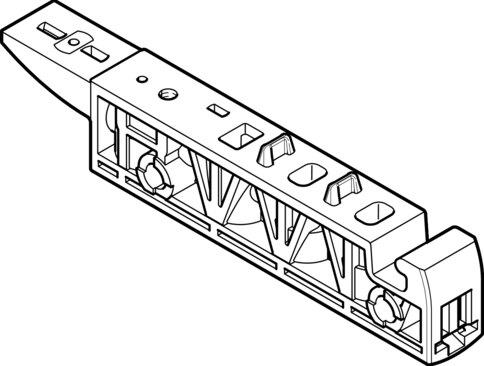

Reference imageConfirm configuration by manufacturer part number.
Festo
1236027
Sub-base VABS-C8-12XB-QX
The Festo 1236027 is a 12 mm wide industrial component featuring a PA-reinforced manifold rail and a product weight of 15 g, engineered with a maximum number of 1 of valve positions. This RoHS compliant part includes cartridge-prepared pilot air port 12/14 and pneumatic connections 1, 3, and 5, while achieving a corrosion resistance class of CRC 0 for environments with no corrosion stress and VDMA24364-B1/B2-L LABS conformity. Installation requires a maximum tightening torque for valve mounting between 0.48 Nm and 0.72 Nm and a maximum tightening torque for wall mounting of 1.3 Nm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1236027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1236027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12 mm
- Max. no. of valve positions
- 1
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.48 Nm...0.72 Nm
- Max. tightening torque for wall mounting
- 1.3 Nm
- Product weight
- 15 g
- Pilot air port 12/14
- Prepared for cartridge
- Pneumatic connection 1
- Prepared for cartridge
- Pneumatic connection 3
- Prepared for cartridge
- Pneumatic connection 5
- Prepared for cartridge
- Note on materials
- RoHS compliant
- Manifold rail material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1236027. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
