Festo
1236029

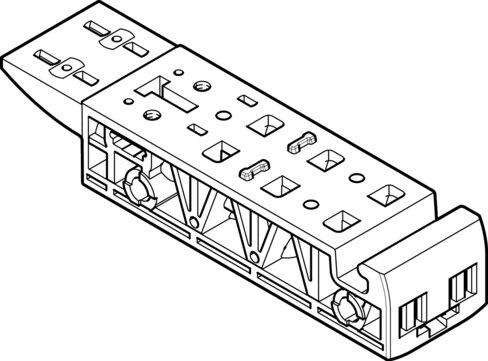

Sub-base VABS-C8-12XB-QX-D
This Festo industrial component, part number 1236029, features a width of 24 mm, a product weight of 30 g, and a PA-reinforced manifold rail material with a CRC of 0 and VDMA24364-B1/B2-L LABS conformity. The unit accommodates a maximum of 1 valve position, utilizes cartridge-prepared pilot air port 12/14 and pneumatic connections 1, 3, and 5, and incorporates RoHS-compliant materials alongside maximum tightening torques of 0.48 Nm to 0.72 Nm for valve mounting and 1.3 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1236029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1236029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 24 mm
- Max. no. of valve positions
- 1
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.48 Nm...0.72 Nm
- Max. tightening torque for wall mounting
- 1.3 Nm
- Product weight
- 30 g
- Pilot air port 12/14
- Prepared for cartridge
- Pneumatic connection 1
- Prepared for cartridge
- Pneumatic connection 3
- Prepared for cartridge
- Pneumatic connection 5
- Prepared for cartridge
- Note on materials
- RoHS compliant
- Manifold rail material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1236029. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
