Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

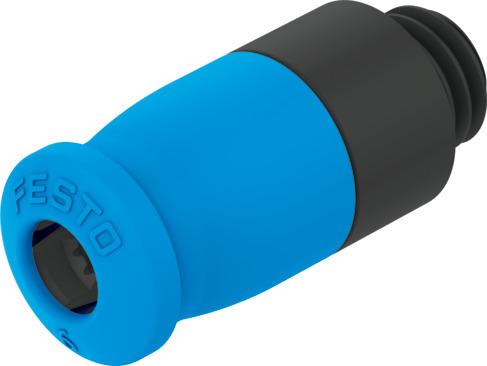

Reference imageConfirm configuration by manufacturer part number.
Festo
1243489
Click fitting NPKA-D-G18-Q6-P10
The Festo part number 1243489 is an industrial component featuring a standard size, a 4 mm nominal width, and a 25.8 mm tubing insertion depth with a push-pull structural design. Designed with an external thread G1/8 pneumatic connection 1 and a connection 2 for 6 mm outside diameter pneumatic tubing, it operates within a pressure range of -0.095 MPa to 1 MPa and supports compressed air or liquid water media with a sealing ring on the screwed plug. This product has an ambient temperature range of -10 °C to 60 °C, a product weight of 4.2 g, and comes in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1243489
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1243489.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Tubing insertion depth
- 25.8 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 2 Nm
- Nominal tightening torque
- 1.25 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 4.2 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- PA66-GF30
- Material of threaded seal
- NBR
- Sleeve material
- POM
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1243489. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
